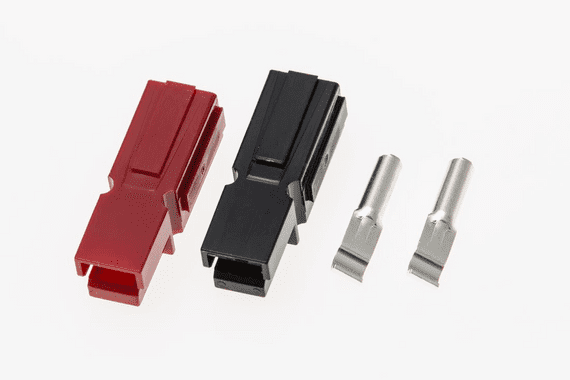

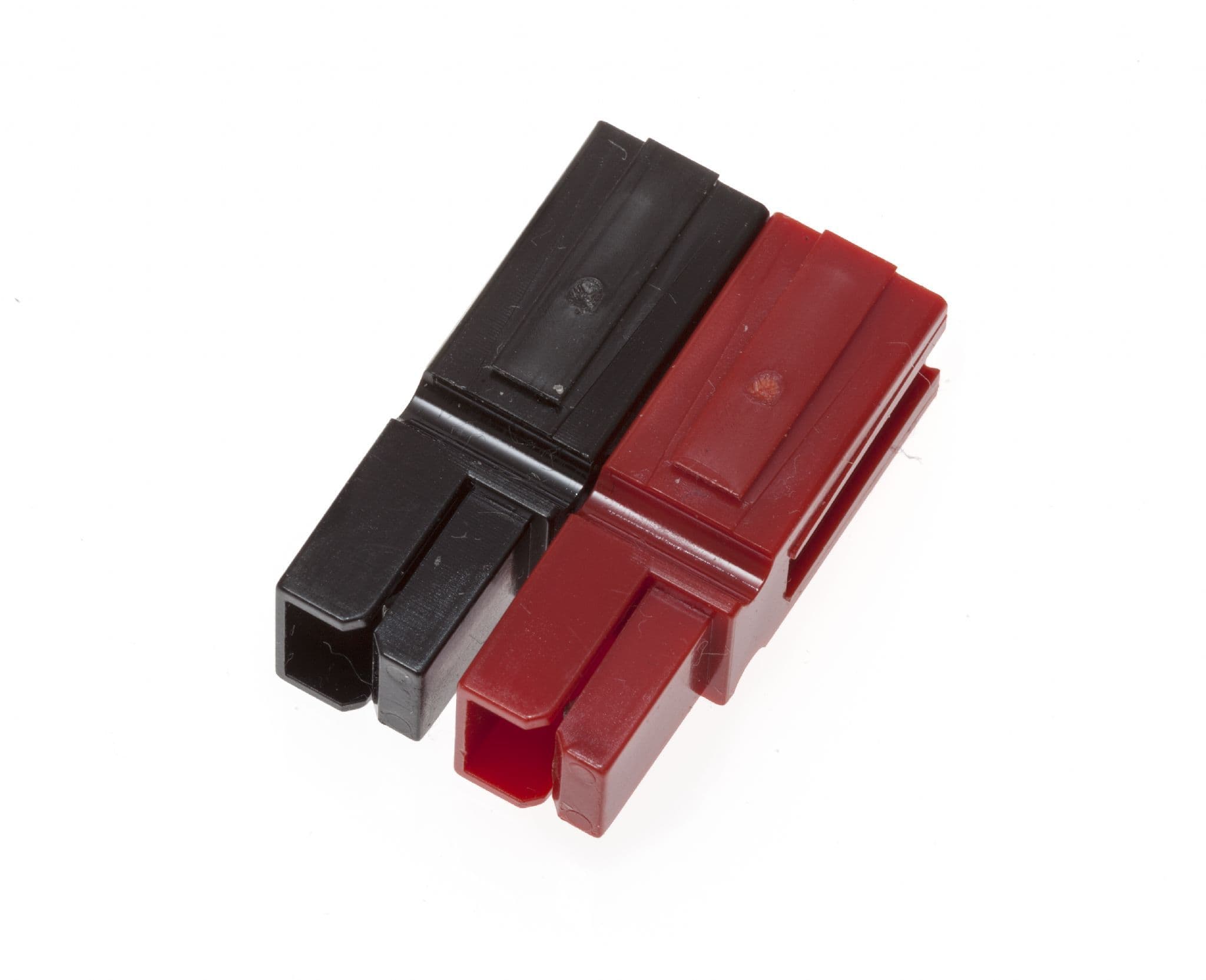

15 Amp Single Pole Interlocking Power Connectors, Red and Black
15 Amp Single Pole Interlocking Power Connectors, Red and Black
15 Amp Single Pole Interlocking Power Connectors, Red and Black
15 Amp Single Pole Interlocking Power Connectors, Red and Black

Product Description

Each Set Contains:-

1 x Red Interlocking Housing
1 x Black Interlocking Housing
2 x 15 Amp Tin Plated Copper Contacts

Descriptions:

Black/Red Interlocking Housings, Single Pole, for 15 / 30 / 45 Amp contacts, BMC1S-BLACK, BMC-1S-RED
HOUSING WITH A SPRING CAN BE USED WITH 15, 30, 45 Amp Contacts
Dimension (inch/mm)
W L H Colour
0.236"
6.6mm		 0.969"
24.6mm		 0.331"
8.4mm		 Red + Black
Housing Contacts, Single Pole, 15AMP, BMC1AG
15 AMP CONTACT FOR SINGLE SPRING HOUSING
Dimension (inch/ mm)
L E d1 D CONTACT MATERIAL WIRE RANGE
A.W.G mm2
0.634"
16.1mm		 0.299"
7.6mm		 0.071"
1.8mm		 0.118"
3.0mm		 COPPER, TIN PLATED 20-16 AWG
0.75 - 1.5 mm2

RoHS Compliant

Specifications

MPN
BMC1S-BLACK + BMC-1S-RED + BMC1AG
Brand
KST
Product Code
111920-0136
Weight
0.025kg

15 Amp Single Pole Interlocking Power Connectors, Red and Black

Item in Stock (758 Available)

Product Code 111920-0136
