Home / 15/30/45 Amp DC Battery Modular Connectors
product review overlay image

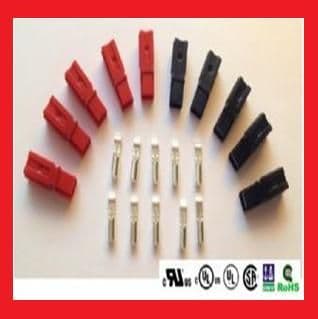

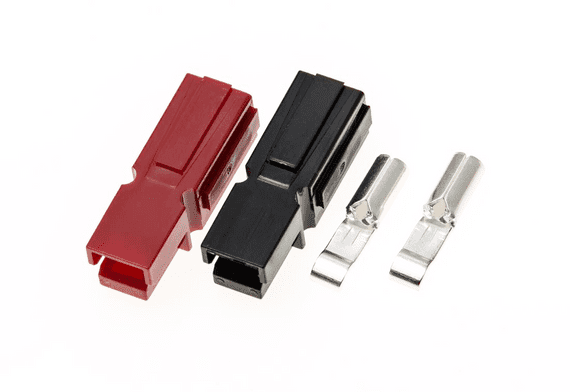

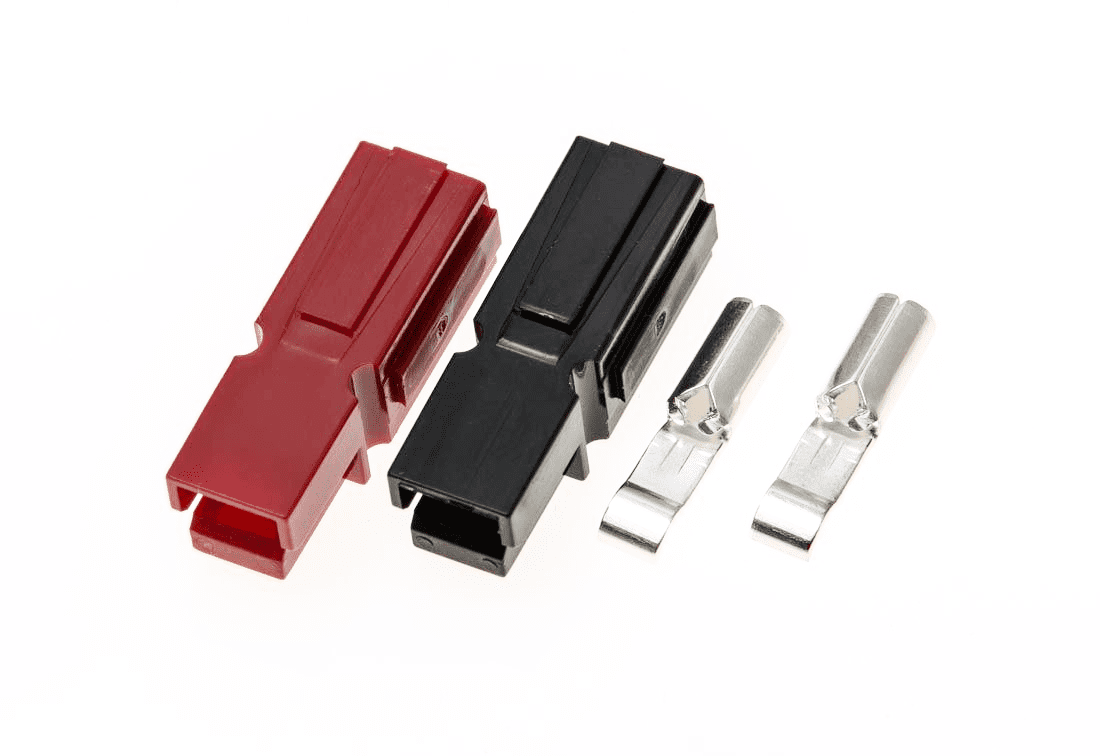

30 Amp Single Pole Interlocking Battery Power Connectors, Red and Black Silver Plating
30 Amp Single Pole Interlocking Battery Power Connectors, Red and Black Silver Plating
30 Amp Single Pole Interlocking Battery Power Connectors, Red and Black Silver Plating
30 Amp Single Pole Interlocking Battery Power Connectors, Red and Black Silver Plating

Product Description

Each Set Contains:-

1 x Red Interlocking Housing
1 x Black Interlocking Housing
2 x 30 Amp Silver Plated Copper Contacts

Descriptions:

Black/Red Interlocking Housings, Single Pole, suitable for 15 / 30 / 45 Amp contacts, BMC1S-RED + BMC1S-BLACK
HOUSING WITH A SPRING CAN BE USED WITH 15, 30 & 45 Amp Contacts
Dimension (inch/mm)
W L H Colour
0.236"
6.6mm		 0.969"
24.6mm		 0.331"
8.4mm		 Red + Black
30AMP CONTACT FOR SINGLE SPRING HOUSING
Dimension (inch/ mm)
L E d1 D CONTACT MATERIAL WIRE RANGE
A.W.G mm2
0.634"
16.1mm		 0.299"
7.6mm		 0.106"
2.7mm		 0.161"
4.1mm		 COPPER, SILVER PLATED 16-12 AWG
1.5 - 4 mm2
RoHS Compliant

Specifications

Brand
KST
Product Code
111920-0134
Weight
0.03kg

30 Amp Single Pole Interlocking Battery Power Connectors, Red and Black Silver Plating

Item in Stock (6631 Available)

Product Code 111920-0134

Ideal for 50V DC Power Distribution in RF Amplifiers,
