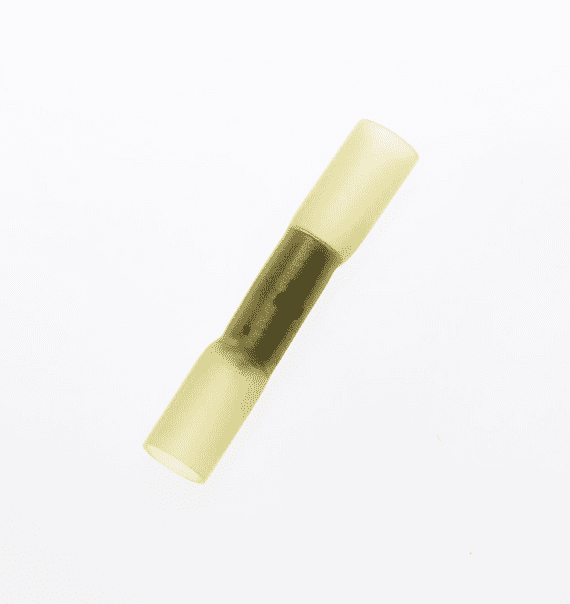

BHT5.5 YELLOW Heat Shrink Butt Splice Connector Crimp Terminals, 20 Amp 4-6mm² (Pack of 100)
BHT5.5 YELLOW Heat Shrink Butt Splice Connector Crimp Terminals, 20 Amp 4-6mm² (Pack of 100)

Product Description

Heat Shrink Butt Splice Terminals, BHT5.5

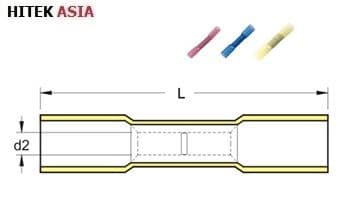

Sizes:   Internal Diameter d2: 3.4mm, Length: 41mm
MAXIMUM ELECTRIC CURRENT:
A.W.G. 26 24 22 20 18 16 14 12 10 8
AMP. 5.5 7 9 12 17 18 30 35 50 70
MAXIMUM ELECTRICAL RATING: 600 VOLTS MAX.
CONDUCTOR MATERIAL: COPPER, TIN PLATED
INSULATION MATERIAL: HIGHT DENSITY PE.
INSULATION COLOR: 12-10 AWG .4-6mm²: YELLOW
3:1 Heat Shrink Ratio
Irradiated, thermally stabilised, heat shrinkable insulation sleeving
Resistant to water, spray oil and chemicals
Temp Range: -10°C to +150°C

Specifications

Alternative Part Nos
9972188, CN11435, 4580724
MPN
BHT5.5
Brand
Hitek Asia
Product Code
10-03-00-1389
Weight
0.243kg

BHT5.5 YELLOW Heat Shrink Butt Splice Connector Crimp Terminals, 20 Amp 4-6mm² (Pack of 100)

Item in Stock (46 Available)

Product Code 10-03-00-1389
