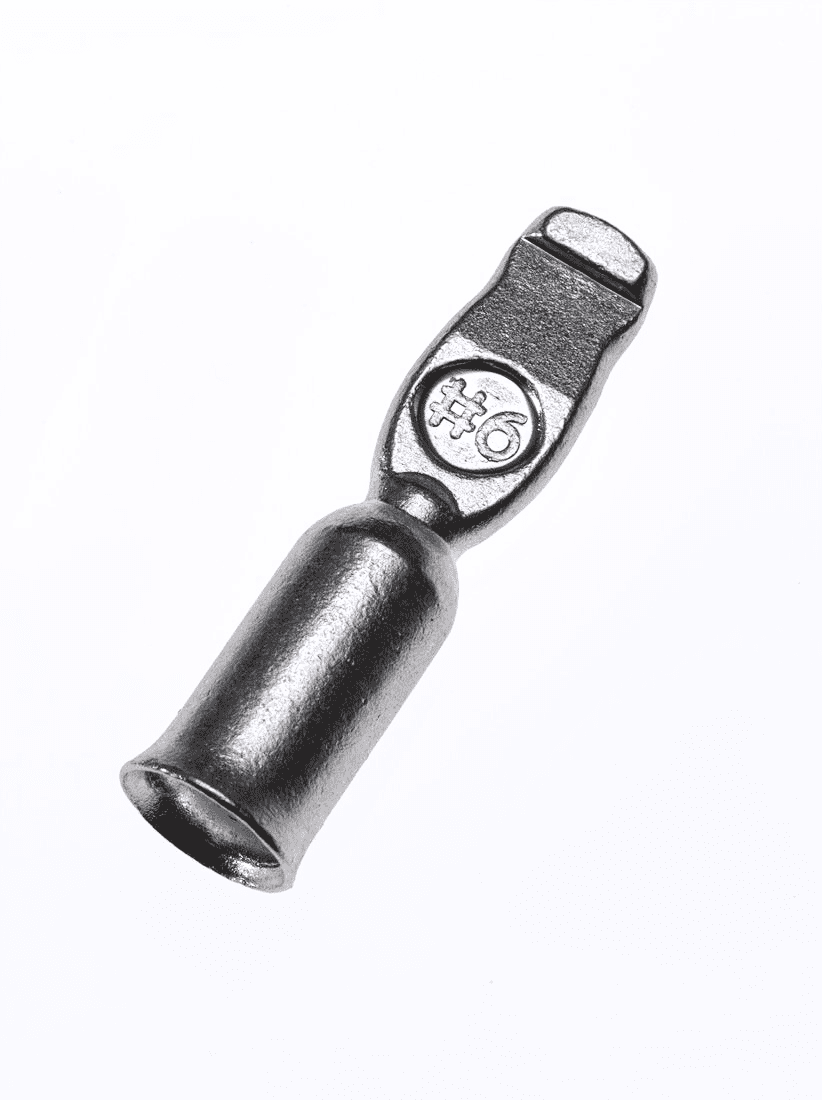

BMC14AG Contact 75 Amp 6AWG 16mm² Silver Plated Copper
BMC14AG Contact 75 Amp 6AWG 16mm² Silver Plated Copper
BMC14AG Contact 75 Amp 6AWG 16mm² Silver Plated Copper

Product Description

Housing Contact, Two Springs, 75 AMP Contacts, BMC14AG 6AWG

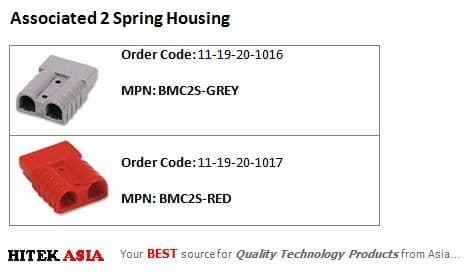

75 AMP CONTACT FOR BMC2S TWO SPRING HOUSINGS
Dimension (inch/ mm)
L E d1 D CONTACT MATERIAL
1.169
29.7		 0.472
12		 0.22
5.6		 0.280
7.100		 COPPER SILVER PLATING
6AWG (16mm²)

RoHS Compliant

Specifications

MPN
BMC14AG
Alternative Part Nos
5900, 290-6118, CN20045
Brand
KST
Product Code
11-19-20-1010
Weight
0.01kg

BMC14AG Contact 75 Amp 6AWG 16mm² Silver Plated Copper

Item in Stock (1360 Available)

Product Code 11-19-20-1010
