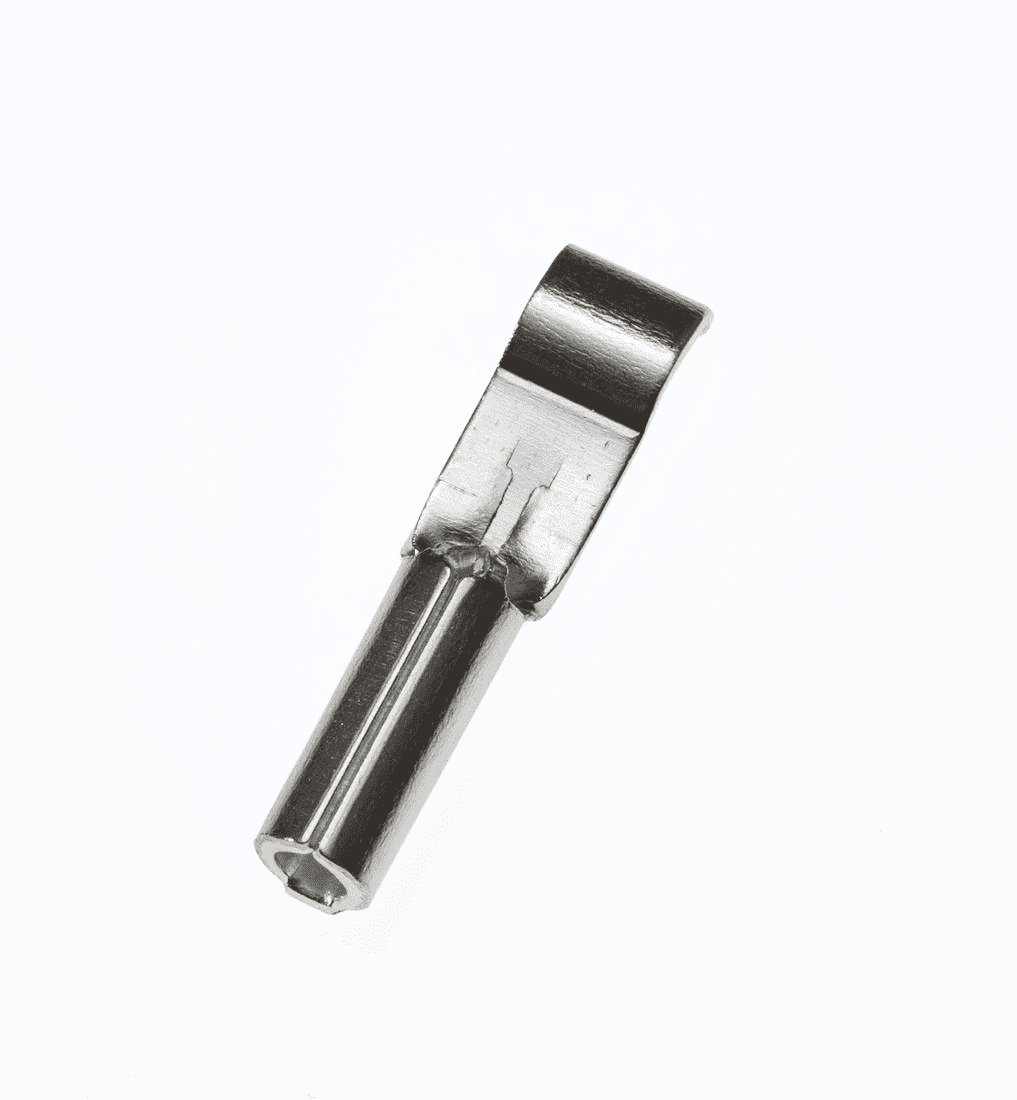

BMC1AG - 15 Amp Single Pole DC Power Contact, 20 - 16 AWG, Silver Plated Copper
BMC1AG - 15 Amp Single Pole DC Power Contact, 20 - 16 AWG, Silver Plated Copper

Product Description

Housing Contacts, Single Pole, 15Amp, BMC1AG
15Amp CONTACT FOR SINGLE SPRING HOUSING

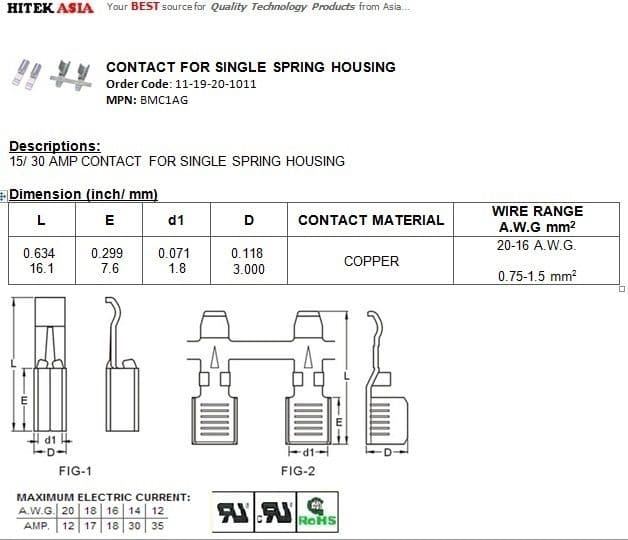

Dimension (inch/ mm)
L E d1 D CONTACT MATERIAL WIRE RANGE
A.W.G mm2
0.634"
16.1mm		 0.299"
7.6mm		 0.0712
1.8mm		 0.118"
3.0mm		 SILVER PLATED COPPER 20-16 A.W.G.
0.75-1.5 mm2

RoHS Compliant and UL Listed


Specifications

MPN
BMC1AG
Minimum Order Qty
10
ROHS
Compliant
Alternative Part Nos
1361308
Brand
Hitek Asia
Product Code
11-19-20-1011
Weight
0.01kg

BMC1AG - 15 Amp Single Pole DC Power Contact, 20 - 16 AWG, Silver Plated Copper

Item in Stock (1517 Available)

Product Code 11-19-20-1011
