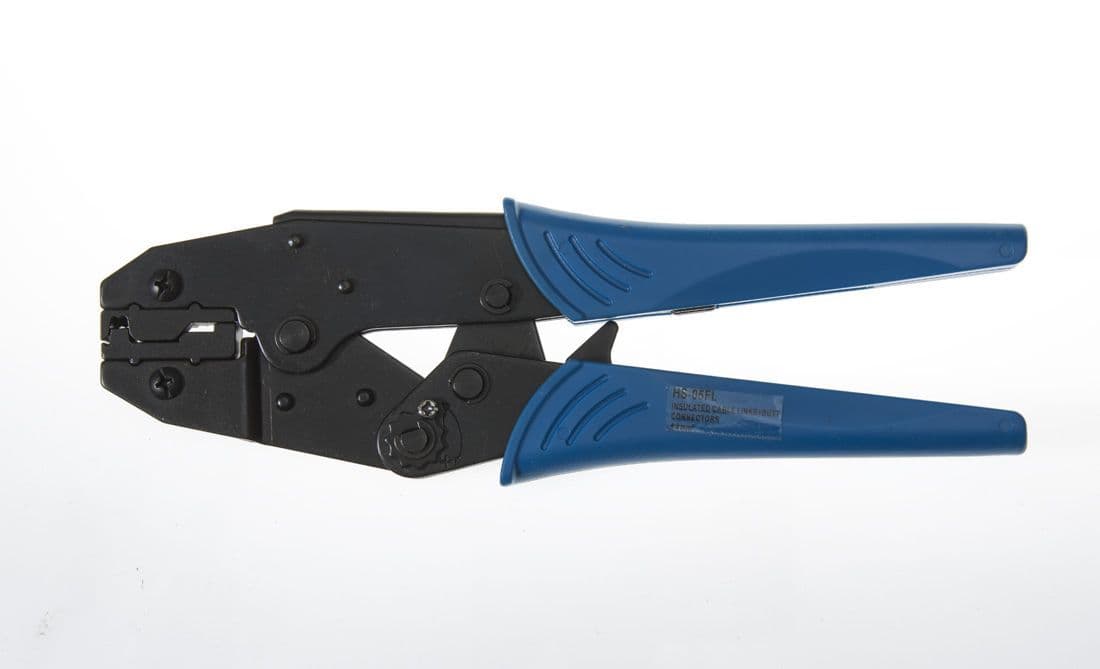

Precision Engineered Ratchet Crimp Tool for Crimping Non-Insulated FLAG Terminals

Suitable for both 4.8mm and 6.3mm FLAG Terminals

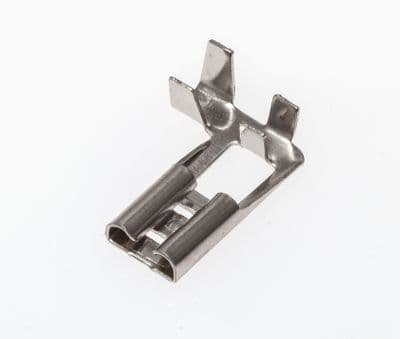

Suitable for use with FLAG Terminals with 'SQAURE' centre cut-outs - which lock terminal in place in crimp tool while crimping. Not suitable for use with Vogt 38373C.60 terminals.

Crimp tool forms terminal around both insulation and wire separately

Suitable Wire Range: 0.5 - 2.5mm² , 22 -14 AWG

Also crimps 4-6mm² wire on Flag Terminals 10-03-00-1209

Full cycle crimp mechanism to ensure consistent, reliable crimp
Ratchet release mechanism to clear miss-crimps and obstructions

Crimp Tool Colour: Blue

Weight: 530g
